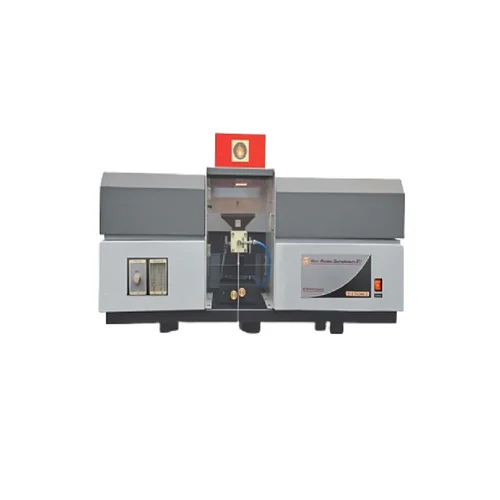

Model 272 Atomic Absorption Spectrophotometer

Mode of operation

Both Standalone and PC -Control

Wavelength Range

185-900 nm-(Automatic Positioning)

Display (optional)

In-built Display / LCD Touchscreen (1200x 800 Resolution)-

Multi-touch / Size- 10.1 Inch

Grating

1800 lines/ mm Holographic Grating With Czerny-turner Mechanism

Bandwidth

Auto Positioning, (0.1 to 2.5 nm )

Wavelength Accuracy

0.2 nm

Wavelength Repeatability

0.1 nm

Baseline Drift

0.004A/10 min

Source Lamp (HCL)

Four-position, Auto-Position-Turret

Eight-position, Auto-Position-Turret (Optional)

Burner Head

100 mm Single Slit Air-cooled Titanium Metal Burner

Optics

Double Beam optics

Detector

PMT ( Photomultiplier tube)

Burner head Adjustment

inbuilt Accurate X-Y Positioner.

Auto positioning with the help of a keyboard (Automatic optional)

Atomization chamber

Teflon chamber, Corrosion-Resistant

Nebuliser

High-efficiency Glass Sprayer with Metal sleeve., Corrosion-resistant

Flame ignition

Automatic

Mode of measurement

Air-Acetylene Flame Method

Measuring type

Concentration, Absorbance (Abs) & Emission

Administrator and User Login

Yes (UP to 5 users )

Operating System

Window 10 64-bit or higher

Audit Trial

Yes

Characteristic

concentration (CC)

0.025g/ml for Cu

Background correction

Deuterium Lamp method

Printer

Memory

Any Printer supporting windows 10

Inbuilt 128 GB (expandable)
