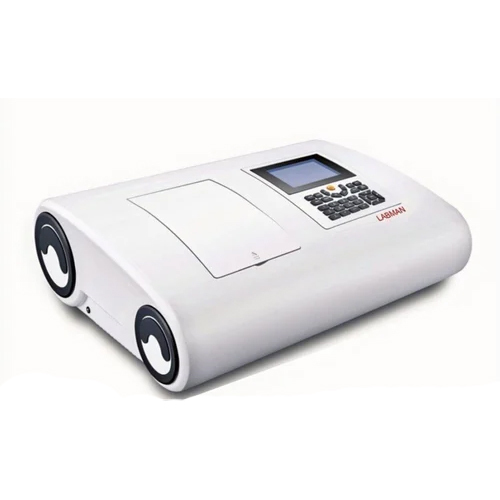

UV3092 UV Vi Spectrophotometer

Optical System

True Double beam UV Visible Spectrophotometer sealed & quartz coated with Czerny-Turner monochromator

Diffraction Grating

1200 lines/nm

Wavelength Range

190 - 900nm

Wavelength Accuracy

 0.1nm at 656.1nm &  0.3nm for entire range

Wavelength Scan Rate

4000 to 2nm/min and 6 nm/min with inter val of 0.05 nm by advance software

Wavelength Slew Rate

14000 nm/min

Wavelength Resolution

0.01 nm

Spectral Bandwidth

Continuous slit 0.1 - 5.0nm with 0.1nm inter val

Resolution

0.1 nm

Photometric Mode

Transmittance, Absorbance, Energy Concentration, All Using UVWin Sof tware

Photometric Range

- 4.0 - 4.0Abs

Photometric Accuracy

0.002A (0 - 0.5A), 0.004A (0.5 - 1.0A), 0.3%T (0 -100%T)

Wavelength Repeatability

 0.05nm

Photometric Reproducibility

0.0001A

Photometric Noise

<0>

Baseline Flatness

 0.0005 A / h at 500nm, after warm up

Baseline Stability

0.0005A/h (500nm, 0Abs), 1hr warm-up

Stray light

 0.01 %T (220nm Nal, 340nm NaNO2)

Detector

Photo multiplier tube

Light Source

Tungsten Halogen and Deuterium arc lamps

PC Interface

RS232/USB

Optional Accessory

Specular Reflection Accessory, Integrating Sphere 60mm / 100mm Automatic 8 Cell Changer, long path cell holder, Peltier Solid Sample holder etc.

Power Supply

Switchable 120 - 230VAC 50 - 60Hz

Weight

43 Kg
